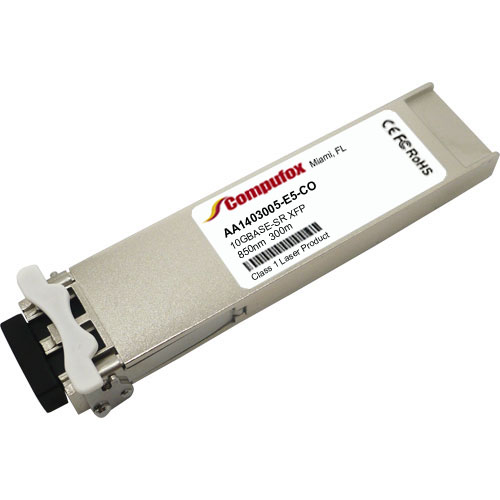

AA1403005-E5

Avaya / Nortel 1-port 10GBase-SR XFP. Supports high modal bandwidth MMF (i.e. 50um, 2000MHz*km) for interconnects up to 300m. Core 62.5um fiber also supported.

Product #: AA1403005-E5
Brand: Avaya/Nortel Compatible
Availability: In Stock
Leadtime: Usually ships in 2 days
Price: $75.00


AA1403005-E5
Avaya / Nortel 1-port 10GBase-SR XFP. Supports high modal bandwidth MMF (i.e. 50um, 2000MHz*km) for interconnects up to 300m. Core 62.5um fiber also supported.

  • Form Factor: XFP
  • Data Rate: 10Gbps
  • Wavelength: 850nm
  • Connector: Dual LC
  • Cable Type: MMF
  • Reach Distance: 300m
  • Operating Temperature Range: 0°C to 70°C
  • Digital Optical Monitoring (DOM): With
  • Applications: 10GBASE-SR
  • 3 year warranty

Compatible Switches:

Avaya ERS 4500 Series Models

ERS 4526GTX (AL4500E06-E6)

ERS 4526GTX-PWR (AL4500E16-E6)


Avaya ERS 5500 Series Models

ERS 5530-24TFD (AL1001E07-E5)


Avaya ERS 5600 Series Models

ERS 5632FD (AL1001E15-E5)

ERS 5650TD (AL1001E14-E5)

ERS 5650TD-PWR (AL1001E13-E5)

ERS 5698TFD (AL1001E12-E5)

ERS 5698TFD-PWR (AL1001E11-E5)


Avaya ERS 8300 Series

ERS 8306 Chassis (DS1402008-E5)

8393SF Switch Fabric/CPU Module (DS1404118-E5)

8394SF Switch Fabric/CPU Module (DS1404099-E5)

8308XL Ethernet Interface Module (DS1404100-E6)


ERS 8310 Chassis (DS1402007-E5)

8393SF Switch Fabric/CPU Module (DS1404118-E5)

8394SF Switch Fabric/CPU Module (DS1404099-E5)

8308XL Ethernet Interface Module (DS1404100-E6)


Avaya ERS 8800 Series

ERS 8003R Chassis (DS1402011-E5)

8834XG Ethernet Interface Module (DS1404123-E6)

ERS 8006 Chassis (DS1402002-E5)

8834XG Ethernet Interface Module (DS1404123-E6)

ERS 8010 Chassis (DS1402001-E5)

8834XG Ethernet Interface Module (DS1404123-E6)

ERS 8010co Chassis (DS1402004-E5)

8834XG Ethernet Interface Module (DS1404123-E6)
